17"-TV
17, inch, led, TV, Product, parameters

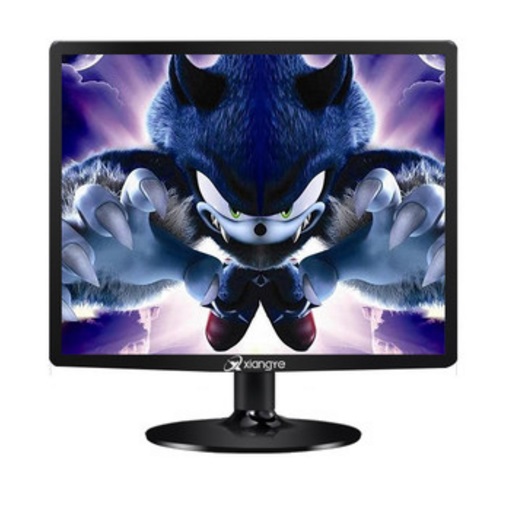

Product appearance
System Sepcifications
Model SH-H1
Operation System full system
Support type (support HD format) 1080P
LCD, panel, type (LCD screen material) LED
DISPLAY SPECIFICATIONS (screen properties)
Resolution (resolution) 1024 x 768
Aspect Ratio (aspect ratio) 4:3
Brightness (screen brightness) 500cd/m
Contrast (contrast) 3000:1
Response Time (boot response time) 3MS
Screen size (mm) (screen size) 15
TERMINAL SPECIFICATIONS (port properties)
RF Input (RF input port) 1
Composite Video (mixed video input port) 1
VGA Audio (VGA input port) Input1 (Back 1)
USB (Multi-media) (USB input port) 1 (Back 1)
Composite Audio Input1 (mixed audio input port) 1
Component Video (component video input port) 1
Component Audio Input1 (component audio input port) 1
HDMI Input3 (HDMI input port) 1
AV Output1 (AV input port) (Side 1)
Earphone Jack1 (headphone input port) (Back 1)
OTHER FEATURES (other functions)
Comb Filter (comb filter) 2D
Parental Control (parental control) Yes
Picture Freeze (picture freeze) Yes
Sleep Timer (sleep time) Yes
Noise Reduction (noise reduction function) Yes
OSD Menu (OSD menu) English
Viewing angle <140 degrees (view)
Maximum Output (speaker maximum output power) 2x5W (4)
Closed captioning (shutdown subtitle function) yes
Last-channel recall (last screen hold function) yes
Multilingual menu (multilingual menu) yes
Auto channel setup (automatic channel setup) YES
POWER SPECIFICATIONS (power attribute)
Power Supply (power input attribute) 100v~240v/50hz/60hz/adapter:<12V>
Power Consumption (power on) less than 25W
Standby Consumption (standby power) 0.5W
To bring a DVB-T2/C (with digital receive function)
DIMENSIONS, AND, WEIGHT (size and weight)
Unit, w/o, stand (mm) (machine size)
Box Dimen. (mm) (outer packing case size) 485*100*395
Weight (Gross) (Kg) (gross weight) 3.2KG
Weight (Net) (Kg) (net weight) 2.6KG
ACCESSORIES (component)
Wall Mount (wall pendant)
Stand (stand bottom support) Yes
Remote Control (remote control) Yes
Power wire (power line) yes
Operating instructions (manual) yes
The warranty (after sale) Warranty for 1 years
