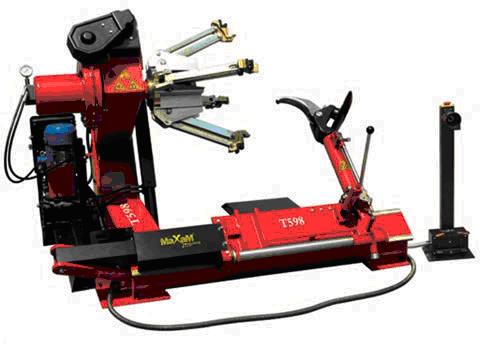

 Model:FSD-T598

SEMI-AUTOMATIC UNIVERSAL TRUCK TYRE CHANGER T598 FOR INDUSTRIAL、

     AGRICULTURAL AND  EARTHMOVING WHEELS RIM CAPACITY 14"-42" .



   ●  TECHNICAL DATA



                Rim diameter                                            14"-42"

                Max.wheel weight                                     1600kg

                Max.wheel width                                       1050mm

                Max.tyre diameter                                    2300mm

                Hydraulic pump motor                              2.2kW 380V-3Ph-50Hz (220V Optional)

                Gearbox motor                                         2.2kW 380V-3Ph-50Hz (220V Optional)

                Bead breaker force                                  3300kg

                Operation control voltage                         24V

                Machine weight approx                             758kg

                Overall dimensions approx                       2500×2000mm

                Power                                                       220/400V 50/60Hz 1P/3P (Optional)

                Gross weight                                            850kg

                Outside dimension (L×W×H)                 2130×1850×1090mm





   ●  OPTIONAL ACCESSORIES



    Alu Alloy Rims Protection Set                                                          Italian Pump & Motor



 Alu Alloy Rims Protection Rings                                 Tubeless Roller

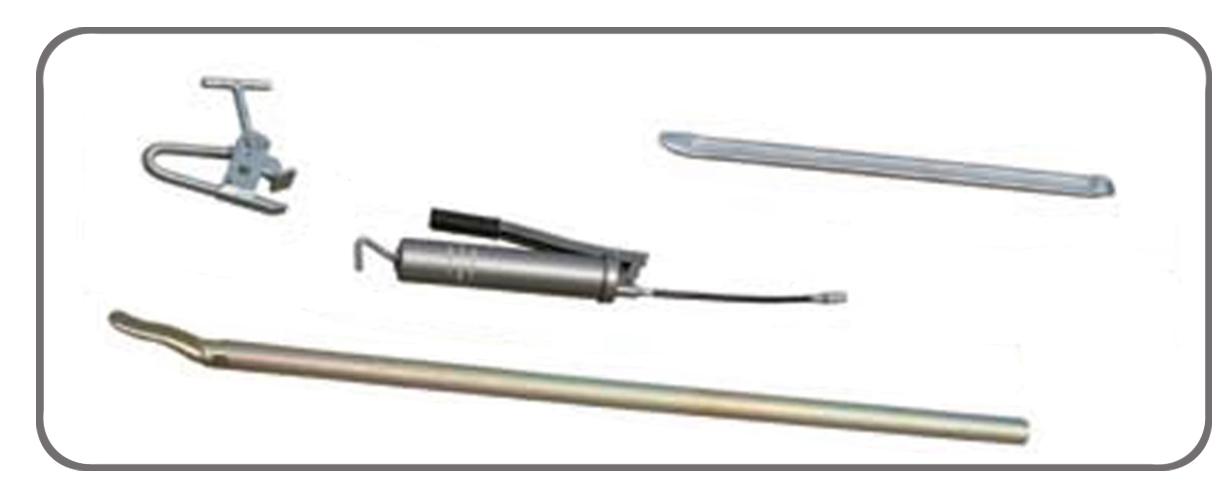

   ●  STANDARD ACCESSORIES
