Model:FSD-T698

 FULL-AUTOMATIC UNIVERSAL TRUCK TYRE CHANGER T698 FOR INDUSTRIAL、

    AGRICULTURAL AND EARTHMOVING WHEELS RIM CAPACITY 14"-42", BI-DIRECTIONAL

    CHUCK WITH 2ROTATIONAL SPEEDS.



  ●  TECHNICAL DATA



              Rim diameter                                           14"-42"

                  Max.wheel weight                                     1600kg

              Max.wheel width                                       1050mm

              Max.tyre diameter                                    2300mm

              Hydraulic pump motor                              2.2kW 380V-3Ph-50Hz (220V Optional)

              Gearbox motor                                         2.2kW 380V-3Ph-50Hz (220V Optional)

              Bead breaker force                                  3300kg

              Operation control voltage                         24V

              Machine weight approx                             760kg

              Overall dimensions approx                       2500×2000mm

              Power                                                       220/400V 50/60Hz 1P/3P (Optional)

              Gross weight                                            850kg

              Outside dimension (L×W×H)                 2130×1930×1050mm

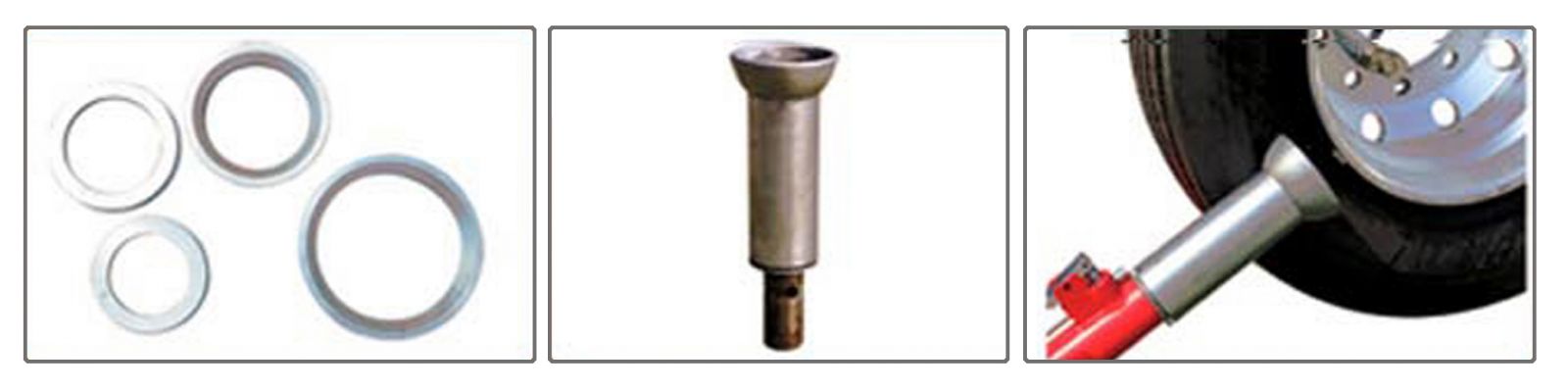

     ●  OPTIONAL ACCESSORIES

 Alu Alloy Rims Protection Set                                      Italian Pump & Motor



Alu Alloy Rims Protection Rings                                 Tubeless Roller





     ●  STANDARD ACCESSORIES
